Customers will be contacted on completion of online booking to confirm availability.

7 Day Weekly rate available on request

2 Tonne towing capacity required.

Please Note:- Delivery and /or Pick Up can be arranged for an extra Fee. Call 1800 776 447

Terms & Conditions

All Scissor Lifts require a $300.00 Security Bond

Security Bond will Refunded on completion of Hire, after Scissor Lift has been inspected and No Damage has occurred

Charges will apply for all damages to equipment/vehicles

All Scissor Lifts must be refueled on return if required

*Cleaning Fee may apply if Scissor lift is returned in an unsatisfactory condition

ITEMS INCLUDED

19ft ELECTRIC SCISSOR LIFT

TRAILER

ITEMS EXCLUDED

CLEANING FEES

ANY DAMAGE CHARGES

*DELIVERY / PICK UP COSTS

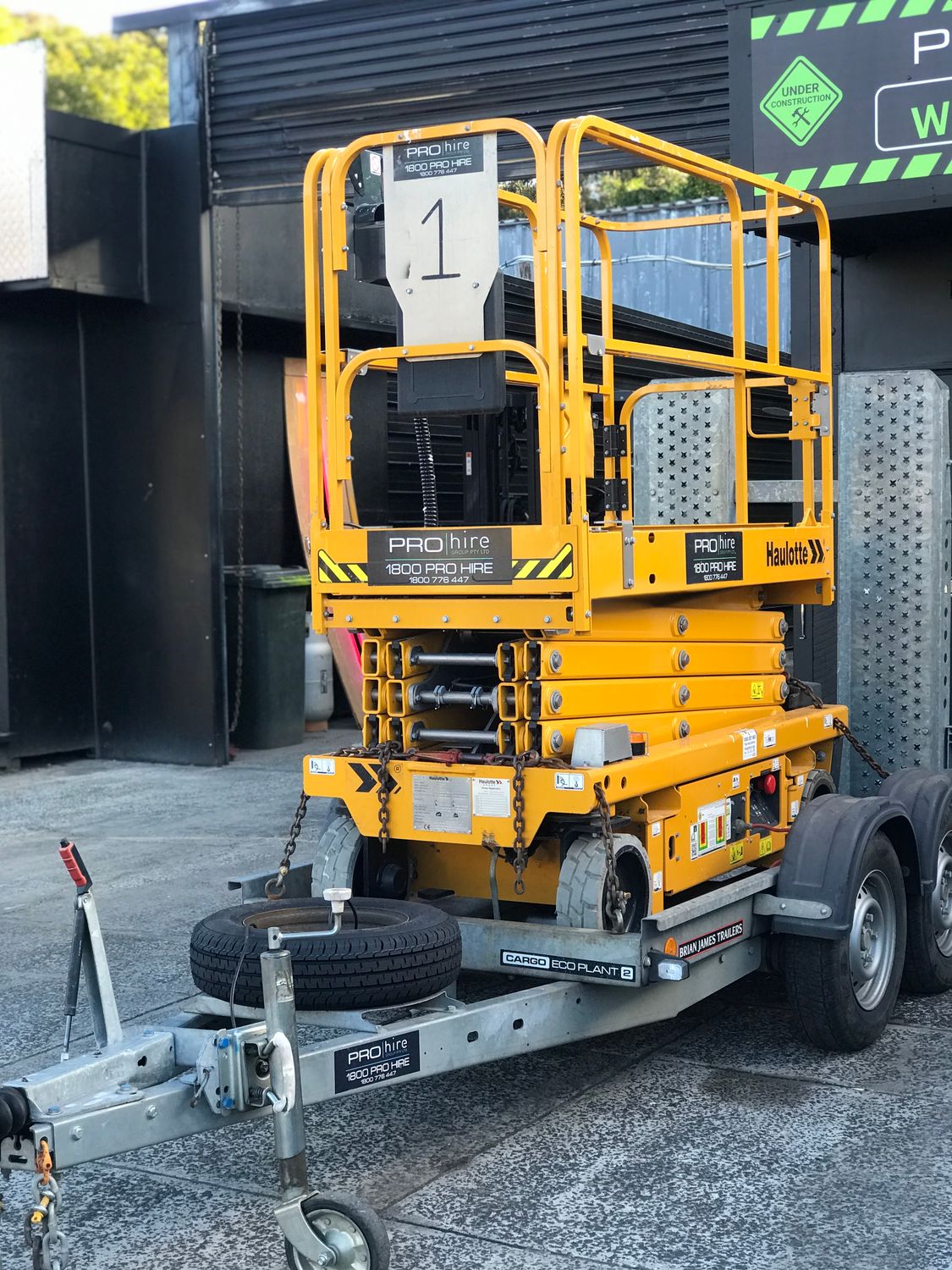

COMBO - 19ft Electric Scissor Lift & Trailer.

Our Haulotte Optimum 8 Scissor Lift is AC battery powered, High precision driving, Self propelled elevated work platform. The narrow width allows access through a standard doorway.

TECHNICAL DATA

Working height	7.77 m
Platform height	5.77 m
Platform length - outside	1.72 m
Platform length - extended	2.59 m
Length - extension	0.86 m
Platform width - outside	0.74 m
Height - stowed	1.98 m
Overall width	0.79 m
Length	1.9 m
Wheelbase	1.38 m
Ground clearance - center	8.7 cm
Ground clearance - deployed potholes	2 cm
Drive speed	0.5 - 4.5 km/h
Max. drive working height	5.77 m
Gradeability	25 %
Tilt	1.5° / 3°
Turning radius - outside	1.5 m
Non-marking tyres	12.5 x 4.13
Batteries	24 V - 225 Ah
Hydraulic system capacity	7 l
Weight	1 590 kg
Platform size - extended	2.59 x 0.74 m
Lift capacity - inside	230 kg (2 pers.)
Lift capacity - outside	230 kg (1 pers.)
Lift capacity on the extension deck	120 kg
Length - extension XL option	0 m

OPTIMUM 8 - DATASHEET AU

https://www.calameo.com/read/00452401416de57a82246

EWP & Trailer Combo (19ft Electric Scissor Lift + Trailer)

Customers will be contacted on completion of online booking to confirm availability. 7 Day Weekly rate available on request 2 Tonne towing capacity required. Please Note:- Delivery and /or Pick Up can be arranged for an extra Fee. Call 1800 776 447

ITEMS INCLUDED *19ft ELECTRIC SCISSOR LIFT *TRAILER ITEMS EXCLUDED *CLEANING FEES *ANY DAMAGE CHARGES *DELIVERY / PICK UP COSTS

Customers will be contacted on completion of online booking to confirm availability.

7 Day Weekly rate available on request

2 Tonne towing capacity required.

Please Note:- Delivery and /or Pick Up can be arranged for an extra Fee. Call 1800 776 447

ITEMS INCLUDED

19ft ELECTRIC SCISSOR LIFT

TRAILER

ITEMS EXCLUDED

CLEANING FEES

ANY DAMAGE CHARGES

*DELIVERY / PICK UP COSTS
