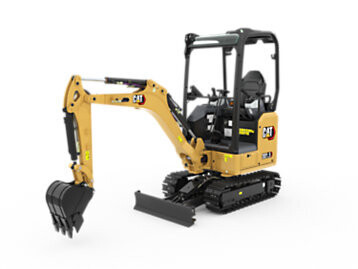

CAT 301.5 (1.5T) Mini Excavator

Store/Hire Equipment/Earth Moving Equipment/1.5 - 1.8 Tonne Excavators/1.5 - 1.8 Tonne Excavators
SKU PHG-CAT301.5004
AU $225.00
PICKUP DATE
Please choose a date
PICKUP TIME
Please choose
RETURN TIME
Please choose
RETURN DATE
Please choose a date
ATTACHMENTS
Please choose a date
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Share this product with your friends
ShareSharePin it
CAT 301.5 (1.5T) Mini Excavator
Store/Hire Equipment/Earth Moving Equipment/1.5 - 1.8 Tonne Excavators/1.5 - 1.8 Tonne Excavators
Product Details
Weight: 2 000.00 kg

PRICE MATCH GUARANTEE

4-HOUR RATE 24-HOUR RATE 7 DAY RATE
$225 + Trailer $225 + Trailer $ ($per day) + Trailer

Price includes GST

Customers will be contacted on completion of online booking to confirm availability.

Please Note:- Delivery and /or Pick Up can be arranged for an extra Fee. Call 1800 776 447

ITEMS INCLUDED

  • 1.5T MINI EXCAVATOR
  • TRAILER + $25.00 per day
  • 300mm BUCKET
  • 450mm BUCKET
  • 1000mm BUCKET

ITEMS EXCLUDED

  • FUEL COSTS
  • CLEANING FEES
  • ANY DAMAGE CHARGES
  • DELIVERY / PICK UP COSTS

EXTRA ITEMS AVAILABLE ON REQUEST

  • AUGER DRIVE ATTACHEMENT
  • AUGER DRIVE DRILL BIT (305mm or 457mm)
  • AUGER DRIVE EXTENSION BAR (1800mm)
  • HAMMER/BREAKER ATTACHMENT
  • RIPPER
  • SIEVE BUCKET 980mm

Terms & Conditions

*All Excavators require a $400.00 Security Bond

*Security Bond will Refunded on completion of Hire, after Excavator has been inspected and No Damage has occurred

*Charges will apply for all damages to equipment/vehicles

*All Excavators must be refueled on return

*Cleaning Fee may apply if Excavator is returned in an unsatisfactory condition

CAT 301.5D (1.5T) Mini Excavator

PRODUCT SPECIFICATIONS FOR 301.5

ENGINE

Net Power 15.7 kW
Engine Model C1.1
Displacement 1.1 l
Stroke 81 mm
Bore 77 mm
Emissions Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note Net power is tested per ISO 9249:2007 and 80/1269/EEC.
Note (2) Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Note (1) Engine power is tested per ISO 14396:2002.
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC 15.7 kW
Gross Power - SAE J1995:2014 16.1 kW

WEIGHTS

Operating Weight 1775 kg
Minimum Operating Weight with Canopy* 1580 kg
Note (1) *Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.
Maximum Operating Weight with Canopy** 1775 kg
Note (2) **Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
EU: CE Plate Weight*** 1740 kg
Note (3) ***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

DIMENSIONS - LONG STICK

Dig Depth 2540 mm
Maximum Blade Height 275 mm
Stick Length 1160 mm
Boom Height - Shipping Position 1040 mm
Maximum Reach 3960 mm
Maximum Dig Height 3490 mm
Note *Overall Shipping Length depends on blade position during shipment.
Tail Swing 820 mm
O/A Undercarriage Length 1460 mm
Track Width - Expanded 1300 mm
Boom In Reach 1450 mm
O/A Shipping Height 2310 mm
Maximum Blade Depth 260 mm
Maximum Reach - Ground Level 3890 mm
Overall Shipping Length* 3590 mm
Maximum Dump Clearance 2510 mm
Swing Bearing - Height 445 mm
Minimum Ground Clearance Below Undercarriage 155 mm
Boom Swing - Left 65 °
Vertical Wall 1890 mm
Track Width - Retracted 990 mm
Track Belt/Shoe Width 230 mm
Boom Swing - Right 50 °

BLADE

Height 225 mm
Note *Expanded – 1300 mm (51 in)
Width* 990 mm

DIMENSIONS - STANDARD STICK

Swing Bearing - Height 445 mm
O/A Undercarriage Length 1460 mm
Maximum Reach - Ground Level 3730 mm
Boom Swing - Left 65 °
Maximum Reach 3800 mm
O/A Shipping Height 2310 mm
Maximum Blade Depth 260 mm
Minimum Ground Clearance Below Undercarriage 155 mm
Vertical Wall 1800 mm
Dig Depth 2340 mm
Track Width - Expanded 1300 mm
Track Belt/Shoe Width 230 mm
Stick Length 960 mm
Maximum Dig Height 3430 mm
Overall Shipping Length* 3620 mm
Boom In Reach 1460 mm
Maximum Blade Height 275 mm
Maximum Dump Clearance 2450 mm
Boom Swing - Right 50 °
Note *Overall Shipping Length depends on blade position during shipment.
Boom Height - Shipping Position 1090 mm
Tail Swing 820 mm
Track Width - Retracted 990 mm
